Wave series

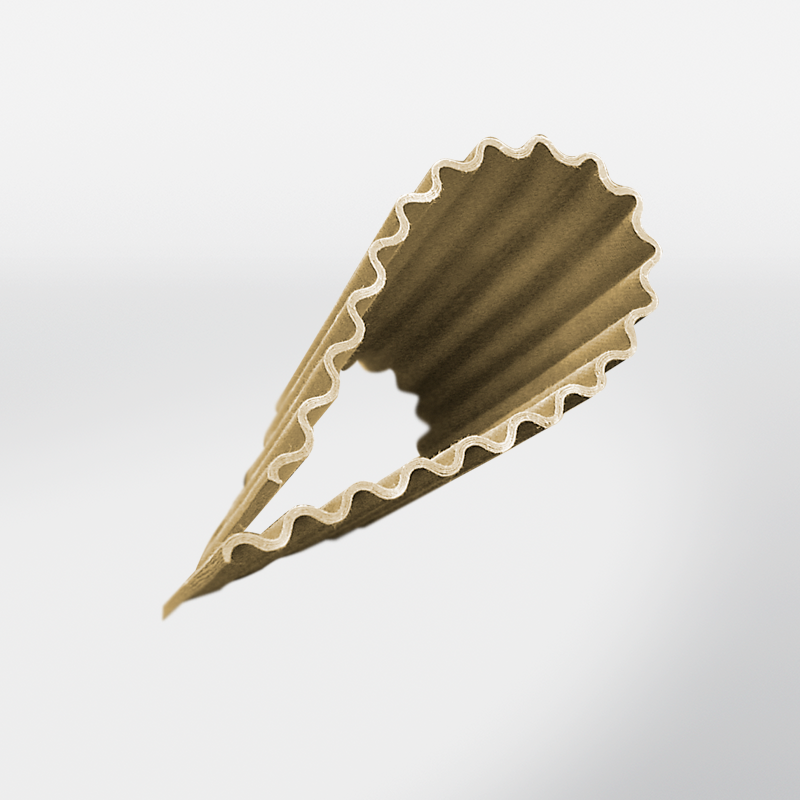

N°2 Wave

The thinnest and most flexible of our Wave boards can be wrapped around tight radiuses while retaining integrity and stiffness. Ideal for displays and decorative facings.

  • part #: 5H25-1290
  • sheet size: 78.75” wide x 127” long flutes run along width
  • crest height: 0.117”
  • thickness: 0.039”
  • approximately 0.29 lbs/sq ft
  • 94 sq ft per roll

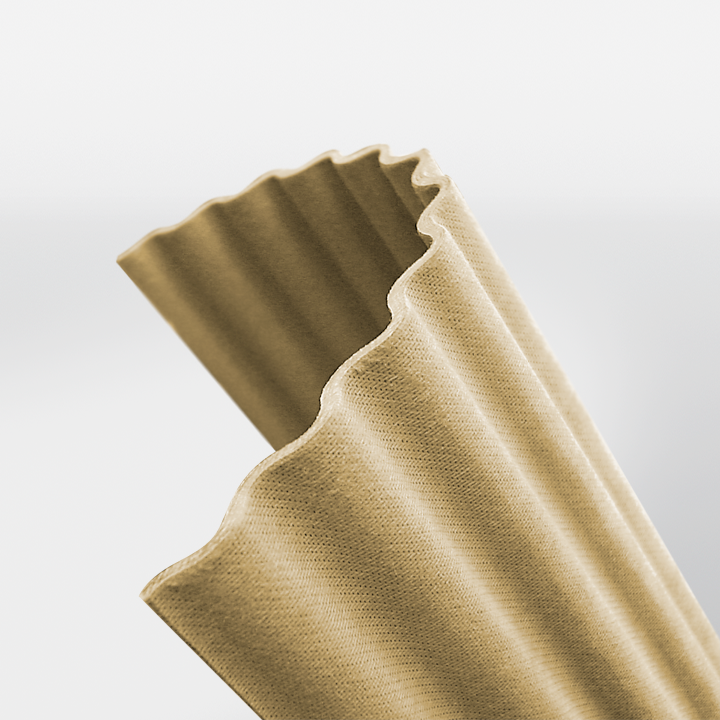

N°4 Wave

Strongest, thickest member of the Wave boards, No. 4 is still easy to fabricate and bend. Ideal for exposed structures, medium- to large-radius wraps and interior design applications.

  • part #: 5H25-1910
  • sheet size: 78.75” wide x 204” long flutes run along width
  • crest height: 0.276”
  • thickness: 0.079”
  • approximately 0.55 lbs/sq ft
  • 111 sq ft per roll

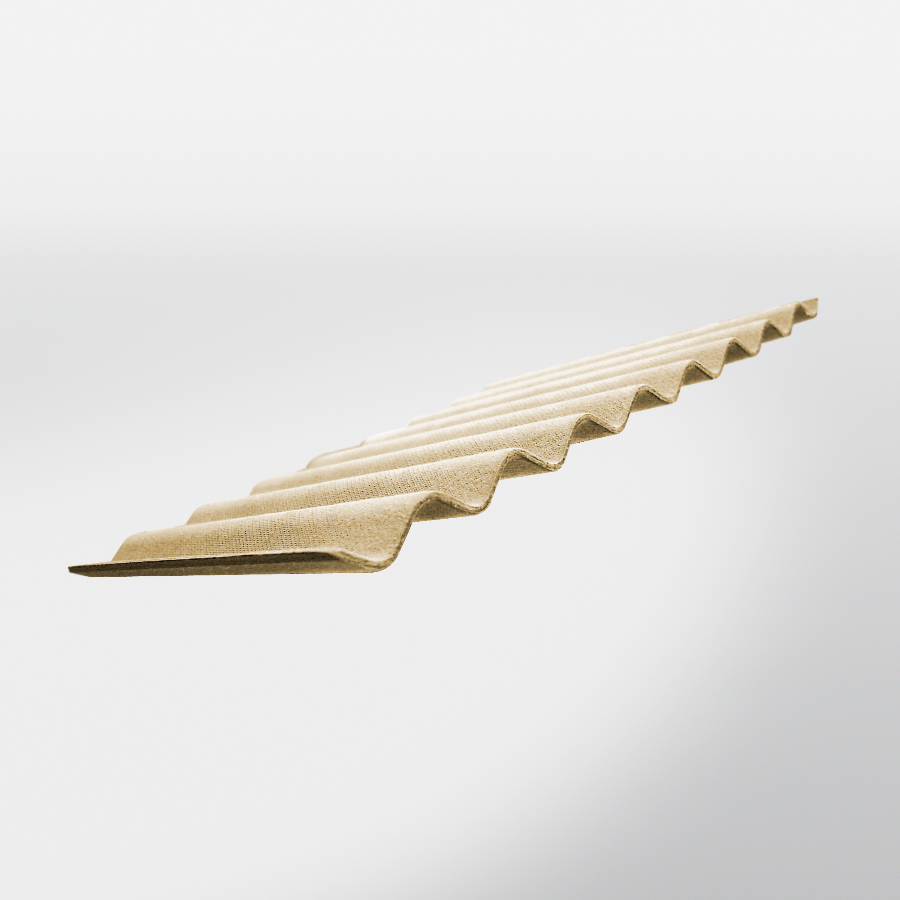

N°6 Wave

Available in a larger sheet size, No. 6 can still be rolled, making it ideal for use as a shippable structural component and/or background for shows, exhibits and large-scale displays.

  • part #: 5H25-1820
  • sheet size: 124” wide x 204” long flutes run along width
  • crest height: 0.335”
  • thickness: 0.059”
  • approximately 0.43 lbs/sq ft
  • 175 sq ft per roll

Gamma series

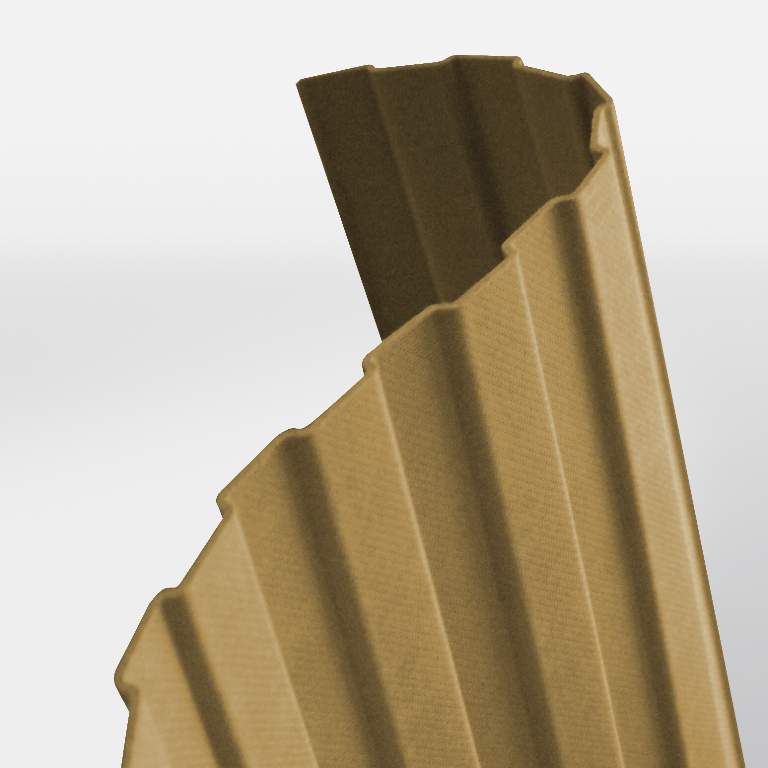

N°3 Gamma

This flexible hard-edged board has similar qualities to our No. 2 Wave board, only with a sharper, rectangular profile. Easy to wrap and bend while retaining strength, it is our lightest Maplex Board.

  • part #: 2H25-1240
  • sheet size: 78.75” wide x 216” long flutes run along width
  • crest height: 0.157”
  • thickness: 0.039”
  • approximately 0.26 lbs/sq ft
  • 118 sq ft per roll

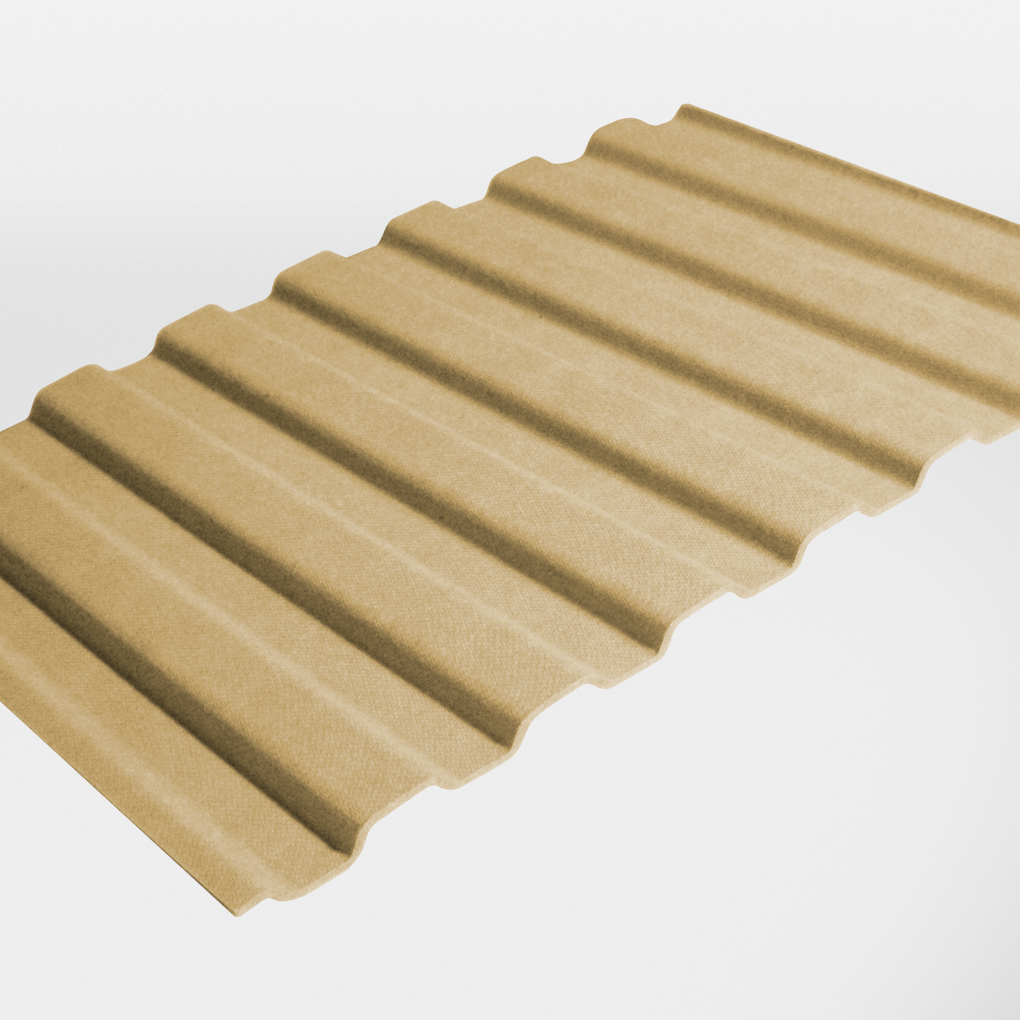

N°5 Gamma

Thick, rigid and strong, No. 5 Gamma’s geometric and angular profile is ideal for both structural and decorative applications. Use its crisp-edged, deep recesses to create dramatic contrasts.

  • part #: 2H25-1190
  • sheet size: 78.75” wide x 208” long flutes run along width
  • crest height: 0.295”
  • thickness: 0.059”
  • approximately 0.40 lbs/sq ft
  • 114 sq ft per roll

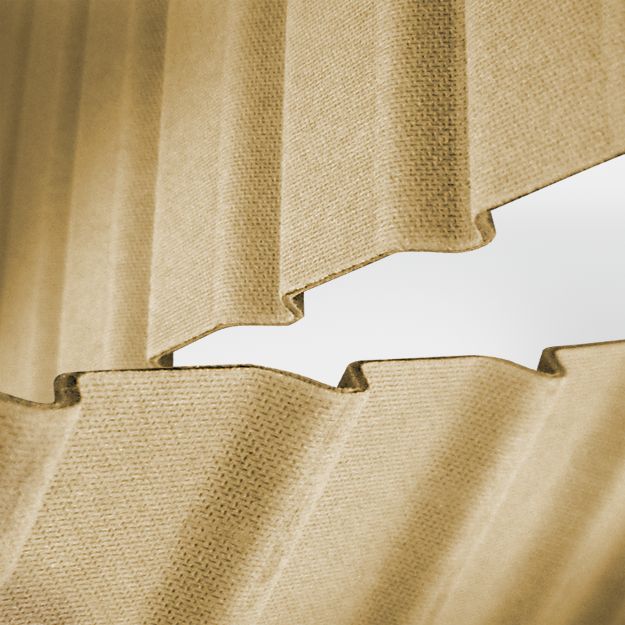

N° 7 Gamma

The “staggered” surface of this sheet gives it a different appearance on each side. The subtly rounded crests are separated by wider areas of flat surface. A thick, durable sheet and an entirely different look for Maplex Board.

  • part #: 2H25-1330 F1
  • sheet size: 78.75” wide x 196.85” long flutes run along
  • width
  • thickness: 0.039”
